TuffFilter
Built for pool professionals who need fast service and a compact fit on modern equipment pads, without stepping up to a bulky multi-cartridge system.

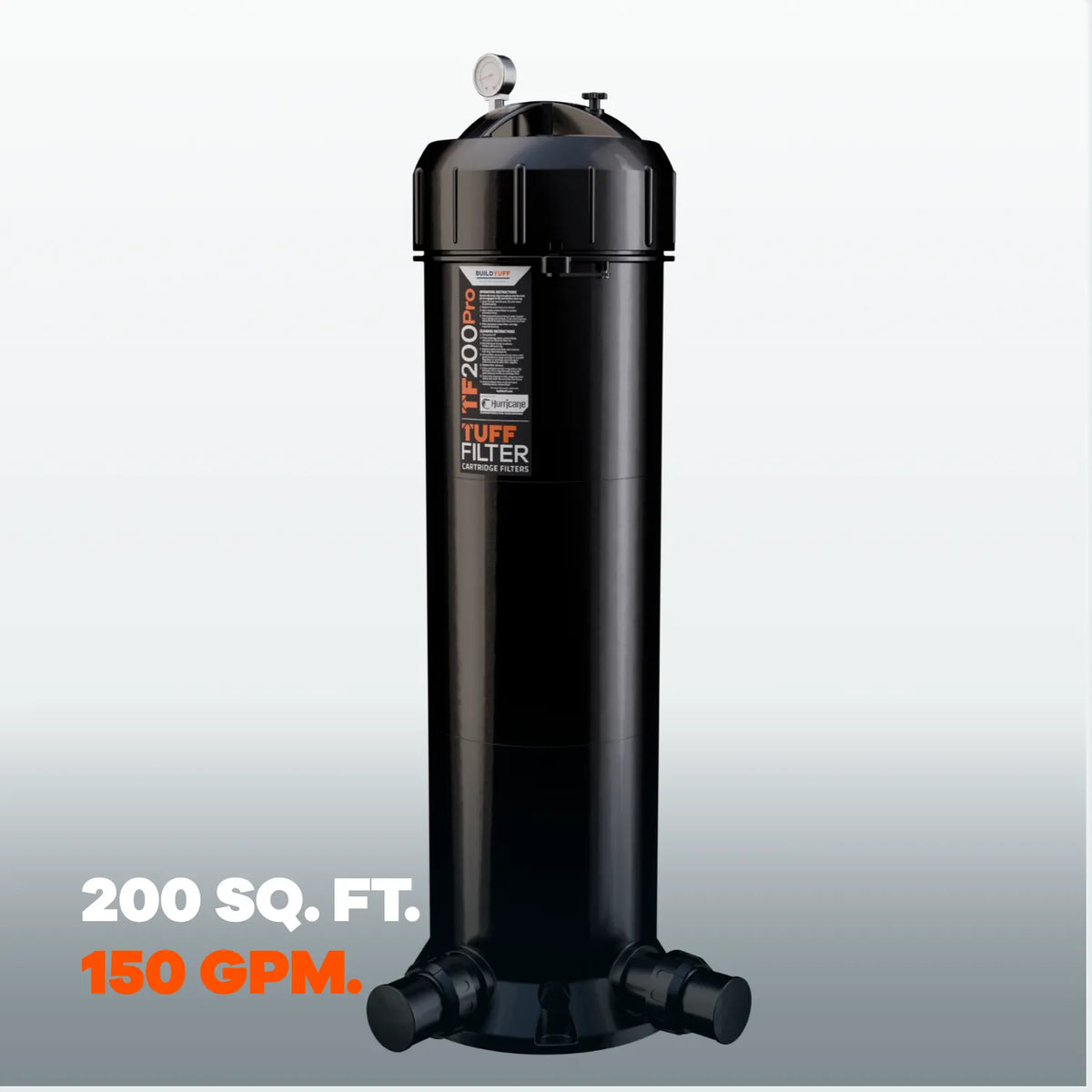

- 200 sq. ft. cartridge, up to 150 GPM. Compact vertical body built for tight equipment pads and retrofits

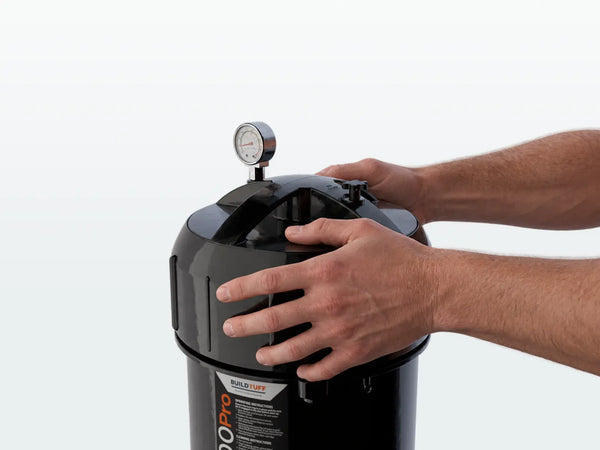

- Twist-lock lid. No clamps, no band bolt, no tools to open it on a service stop
- Two inlets and two outlets on different faces. Plumb it the way the pad actually runs, with 1.5" and 2" unions

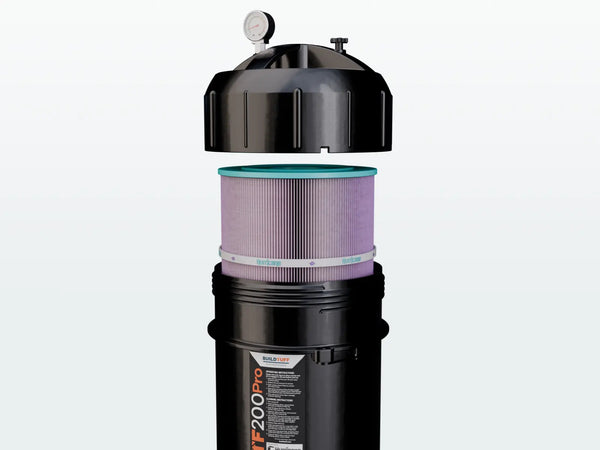

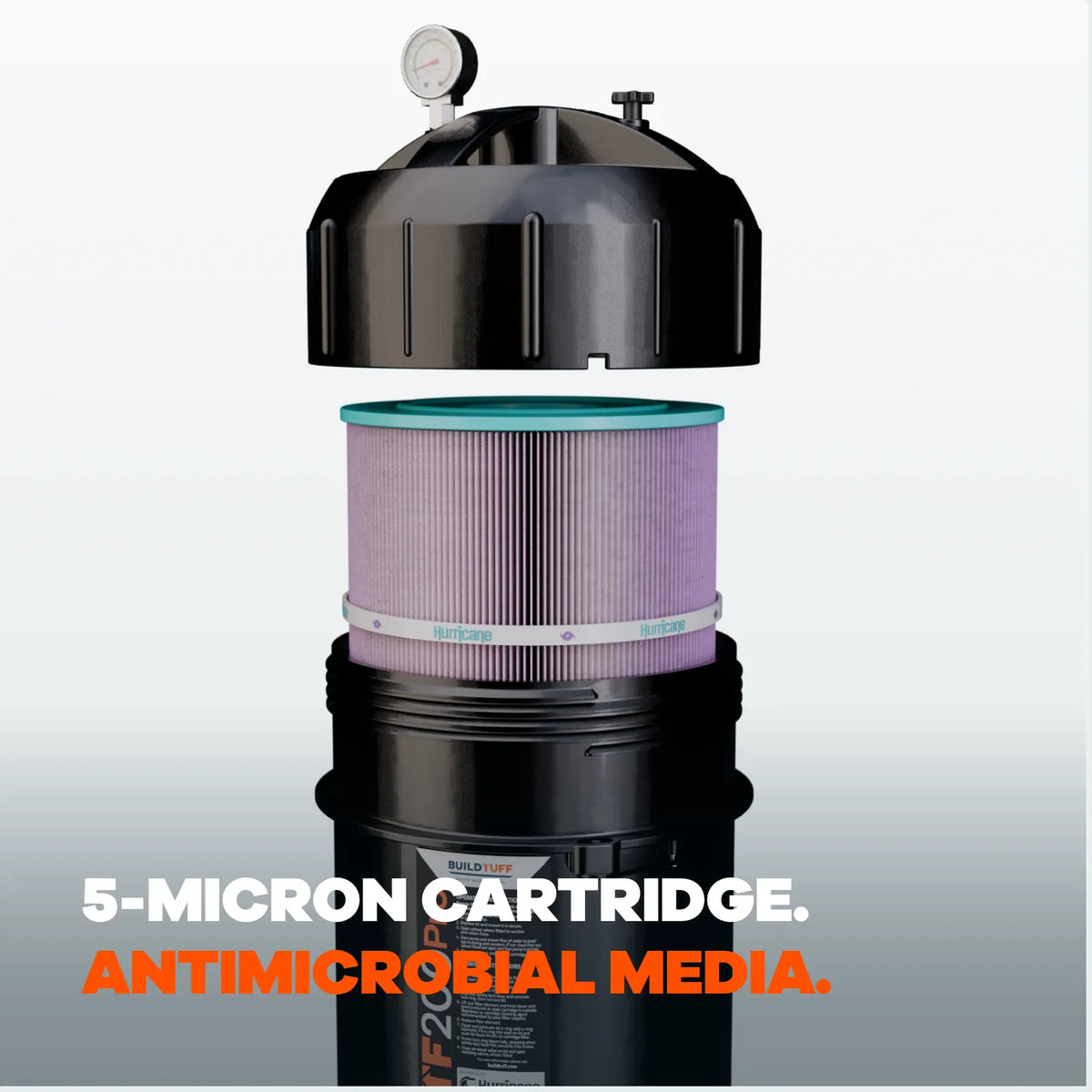

- Purple antimicrobial cartridge on the TF200PRO: the Hurricane HF8412-01, cross-referenced across major US retail
- 5-year warranty, and competitive pricing
Not sure how many? Use the deck calculator.
TuffFilter is a high-flow, single-cartridge pool filter designed for tight equipment pads, fast installs and straightforward servicing. Its compact vertical footprint delivers 200 sq. ft. of filtration and flow up to 150 GPM, without the bulk of a traditional multi-cartridge system.
A tool-free twist-lock lid makes cartridge access fast, while multiple inlet and outlet positions give installers greater flexibility when plumbing new systems or retrofitting existing pads. Choose the TF200 for everyday residential applications or step up to the TF200PRO with 5–10 micron antimicrobial filtration for demanding systems and heavier service use.
- Filter area
- 200 sq. ft.
- Max. flow rate
- 80 GPM on 1.5" pipe · 120 GPM on 2" pipe · 150 GPM unrestricted
- Body
- Compact vertical, twist-lock lid, no clamps or tools
- Ports
- Two inlets and two outlets, positioned on different faces
- Unions
- 1.5" and 2"
- Customization
- Wholesale and volume pricing at qualifying quantities
- Warranty
- 5-year manufacturer's warranty; 1-year warranty on cartridge
- 1x TuffFilter body with twist-lock lid
- 1x cartridge: pleated polyester on TF200, purple antimicrobial (Hurricane HF8412-01) on TF200PRO
- 1.5" and 2" union set
- 2x caps: one for the unused inlet, one for the unused outlet
- Pressure gauge and air relief
- Install and service instructions

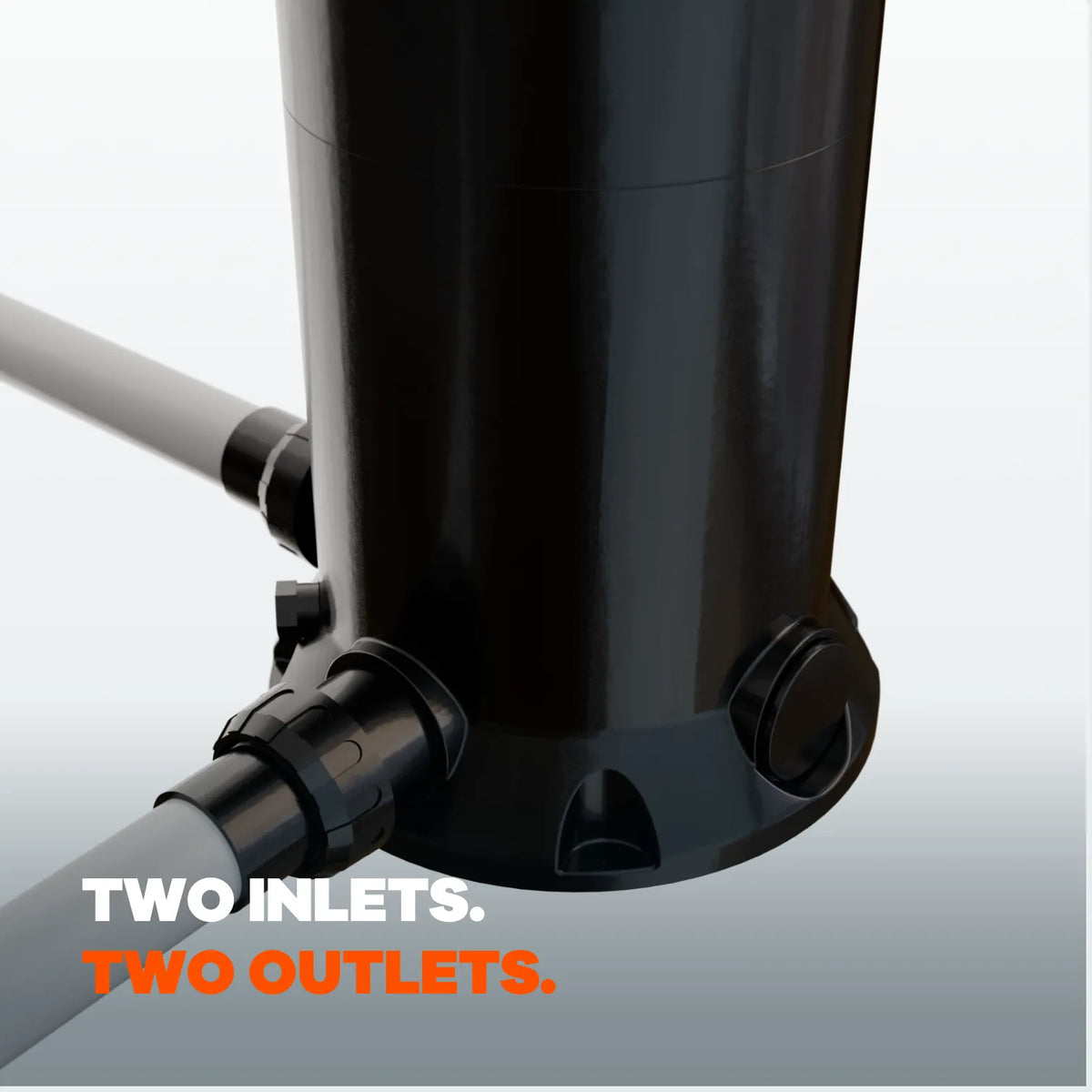

Two inlets and two outlets, positioned on different faces, mean you can bring the plumbing in from whichever side the existing pad allows, instead of re-routing pipe to suit the filter. Unions come in 1.5" and 2". The compact vertical body drops into the footprint a sand filter or older cartridge unit leaves behind, and the twist-lock lid needs clear headroom rather than clear space all the way around.

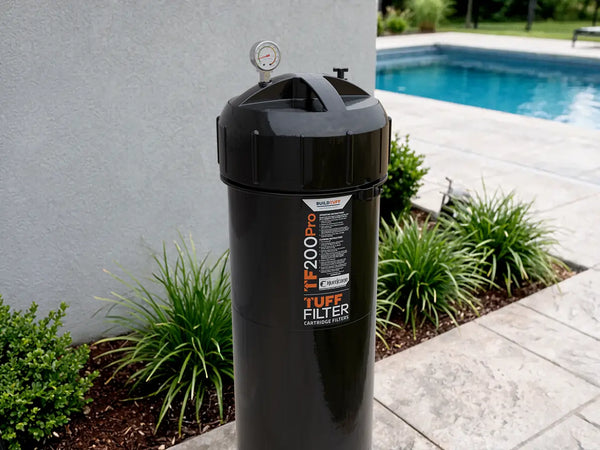

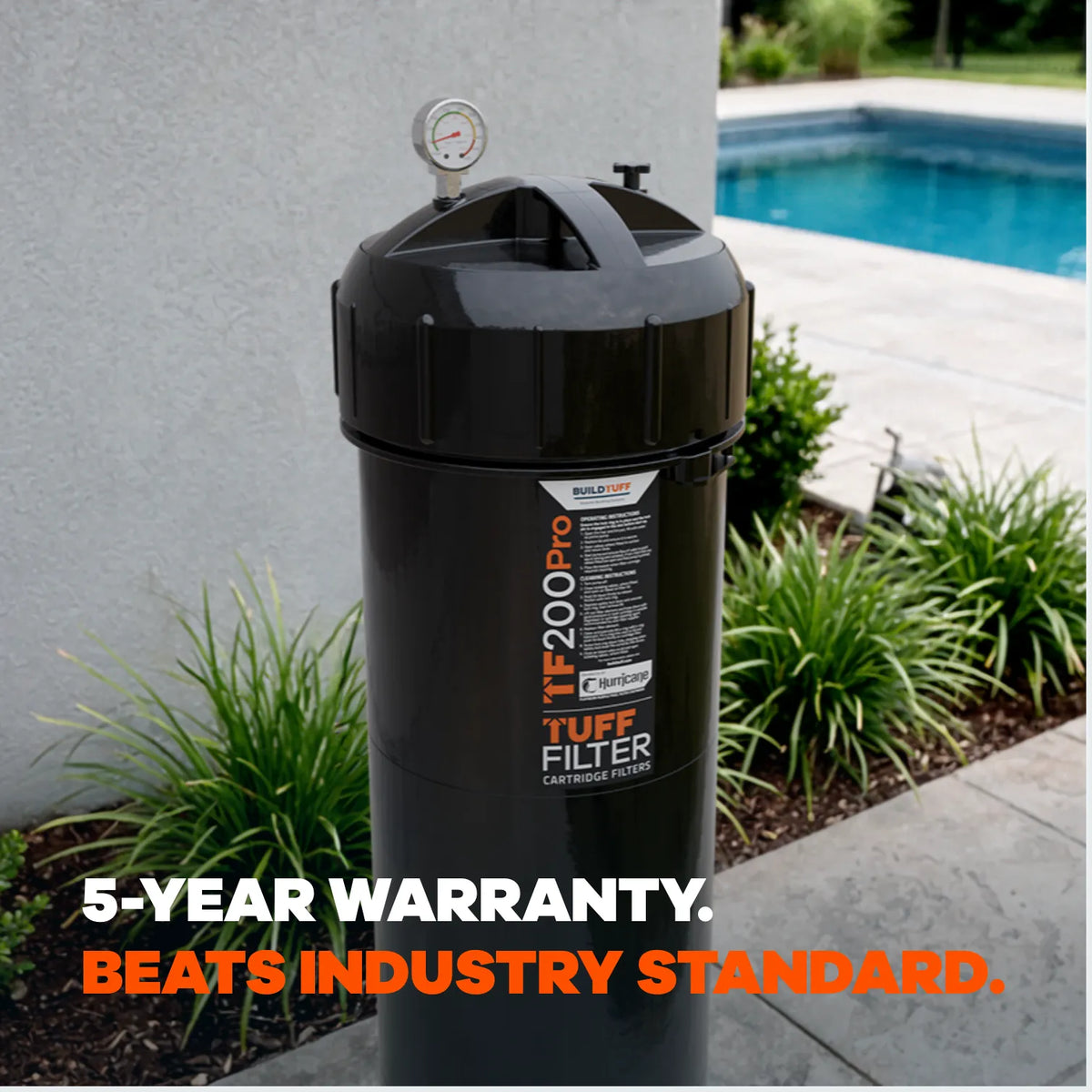

5-year manufacturer's warranty against defects in materials and workmanship when installed per manufacturer instructions. 1-year warranty on cartridge.
Free shipping, USA-wide. Units typically ship within a few business days. Ask about volume pricing and branch stocking for qualified contractor and distributor accounts.
What pros are saying
What changes for you
Less time on the pad. Less pipe to re-route. Less to go wrong.

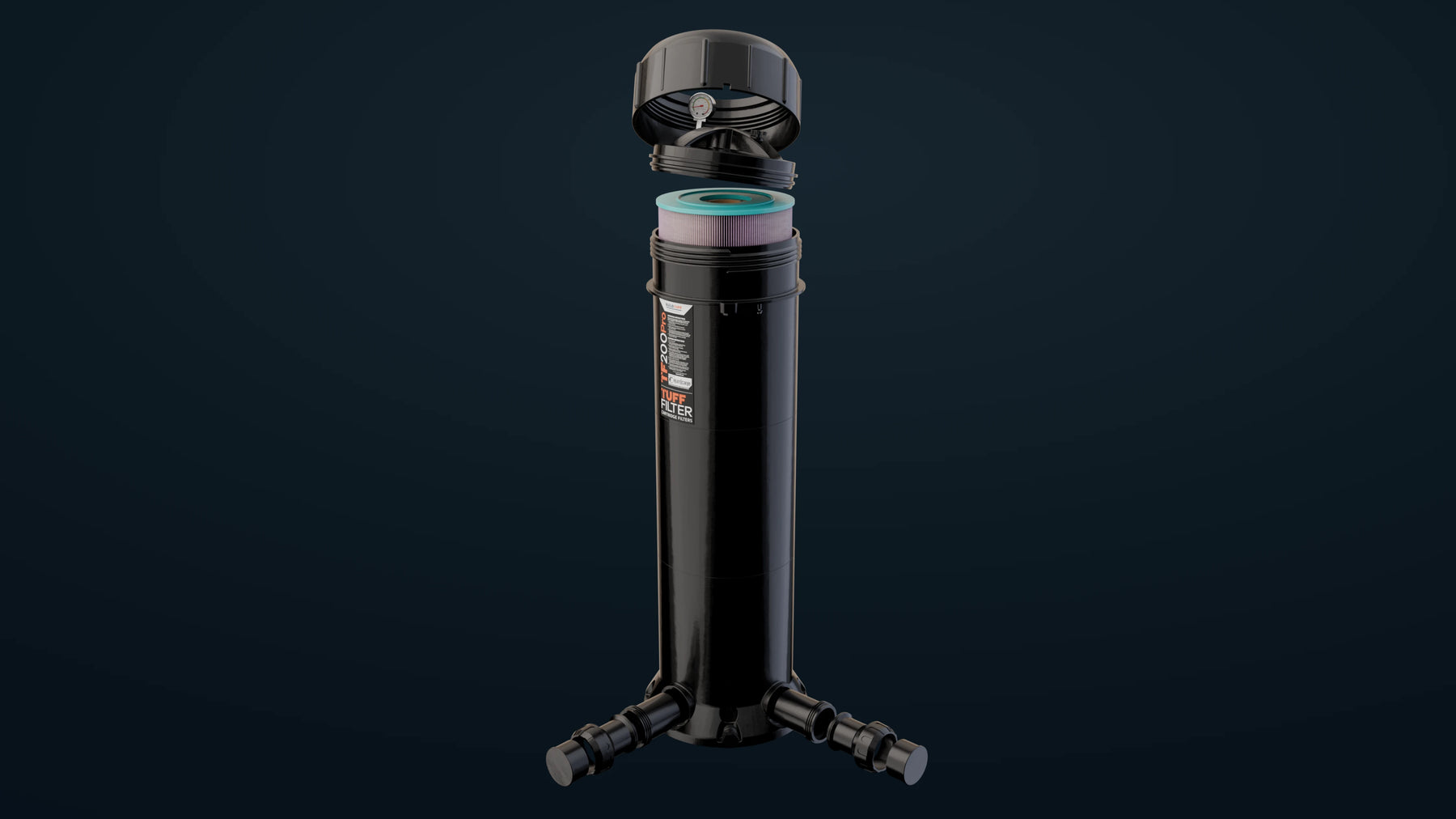

Every part earns its place

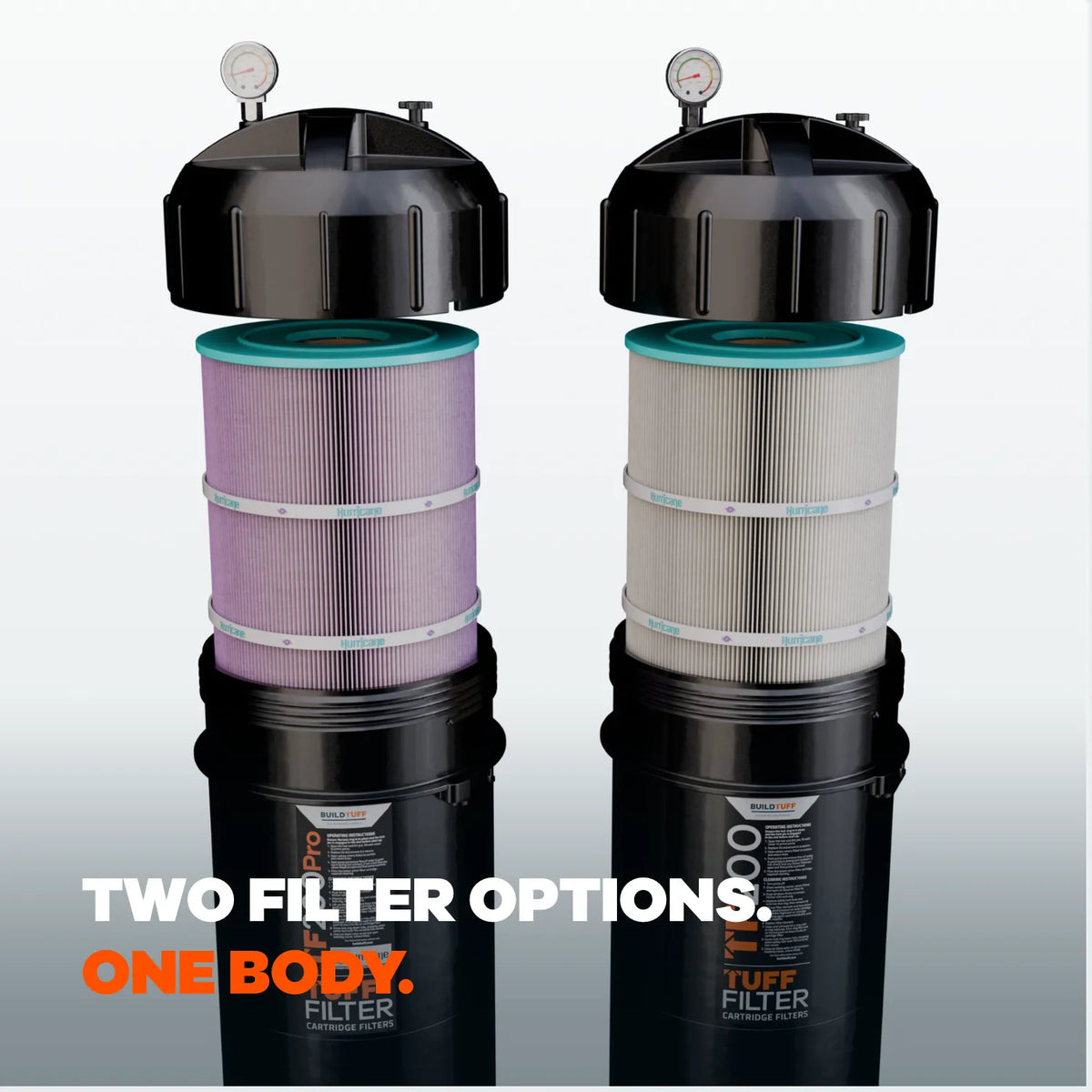

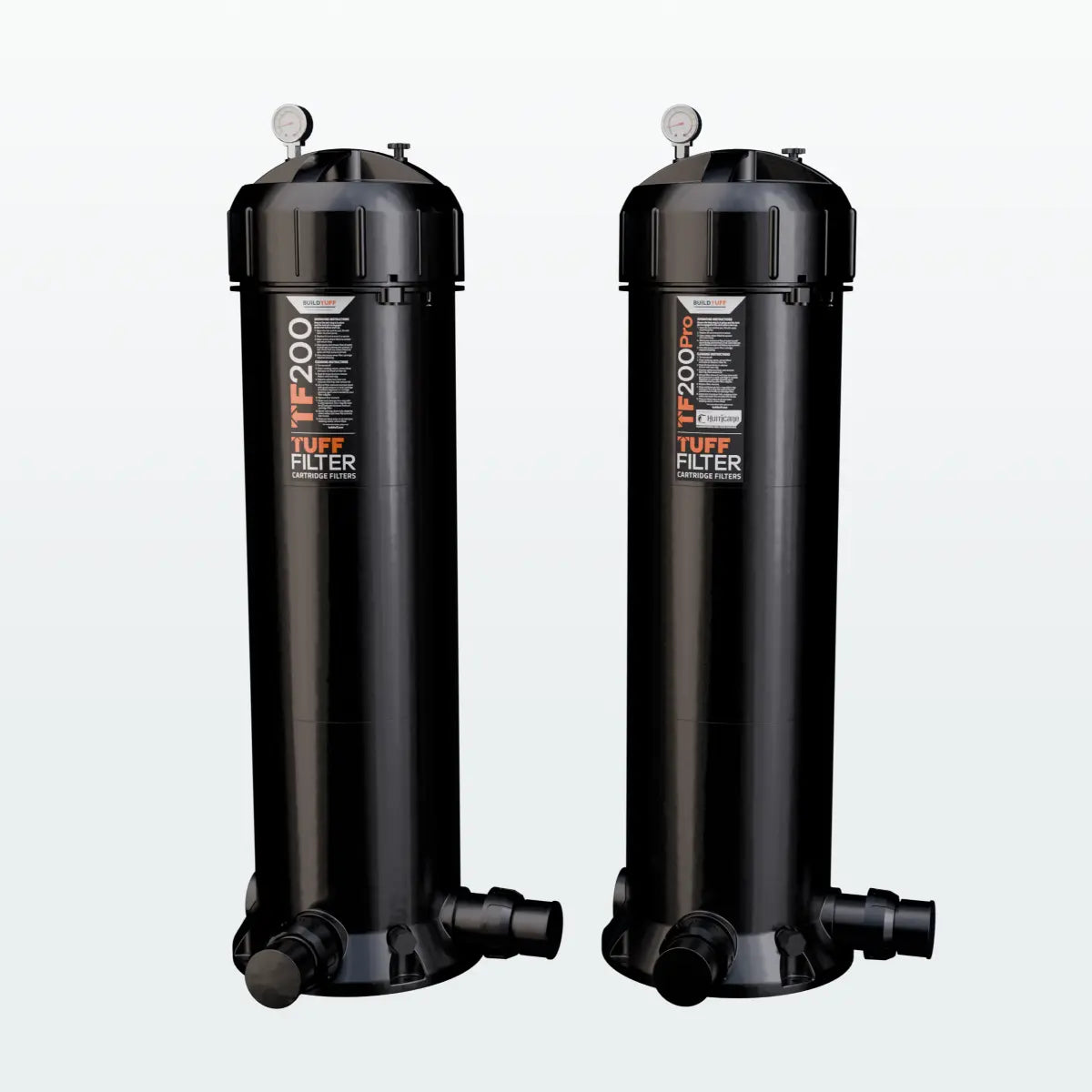

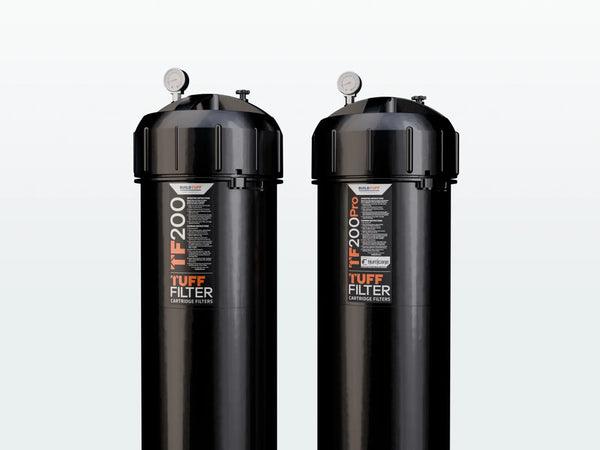

TF200 or TF200PRO
Same body, same flow, same tool-free lid. The choice is the cartridge, and how clear the water needs to be.
Shared across both: 200 sq. ft. filter area, up to 150 GPM maximum flow, compact vertical body, twist-lock lid with no clamps or tools, two inlets and two outlets on different faces, 1.5" and 2" unions, and the 5-year warranty.

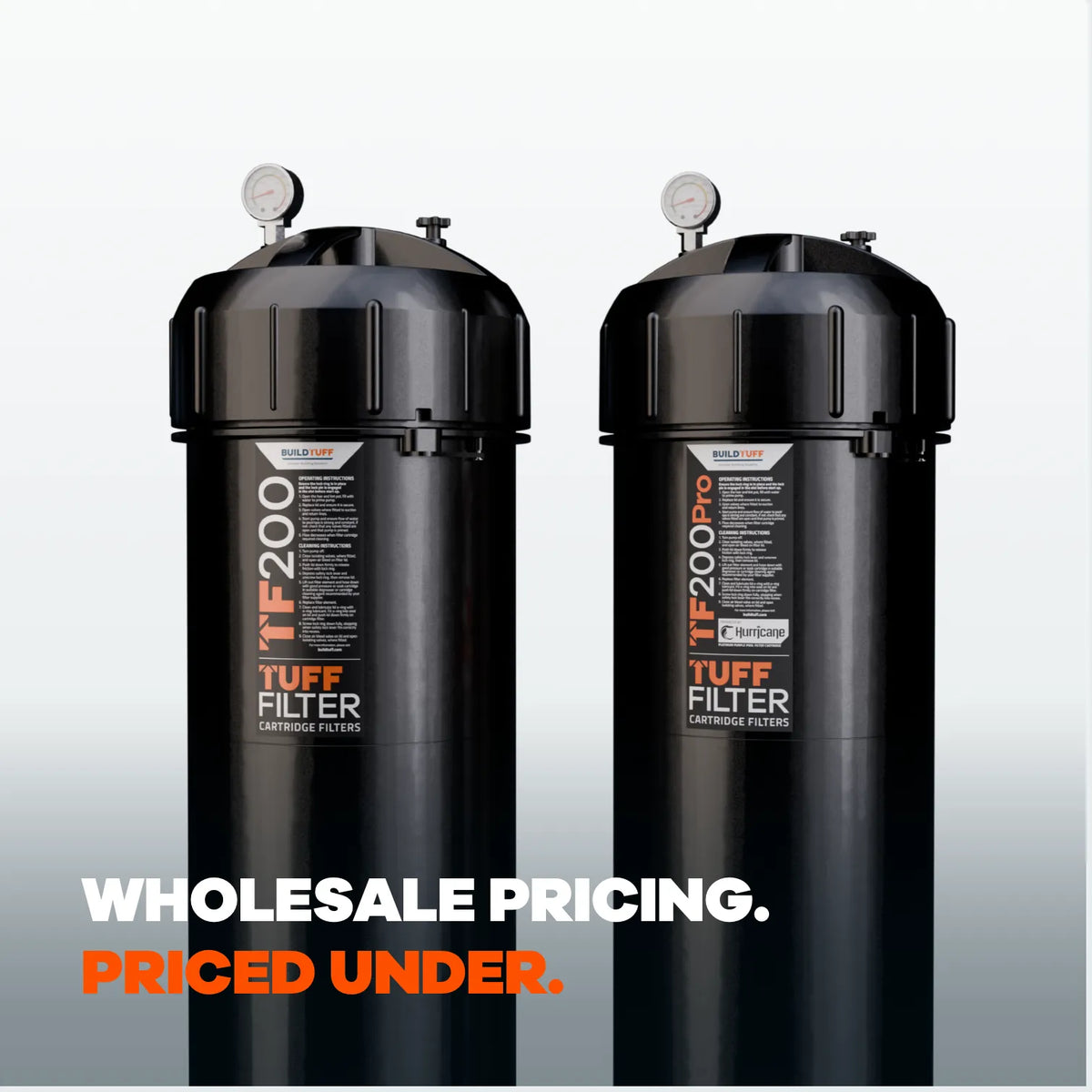

Wholesale and competitive volume pricing for builders, remodelers and service companies. Also available direct, with free shipping USA-wide.
Matched on spec. Beaten on price.
TuffFilter matches the 200 sq. ft. / up to 150 GPM format of the strongest compact alternatives and comes in under them. Indicative sell prices from manufacturer and retailer listings.
Competitor prices are indicative retail figures gathered from manufacturer and retailer listings and will move. Larger multi-cartridge filters trade a bigger footprint for longer intervals between cleans. If that's the priority on a job, they're the right call.

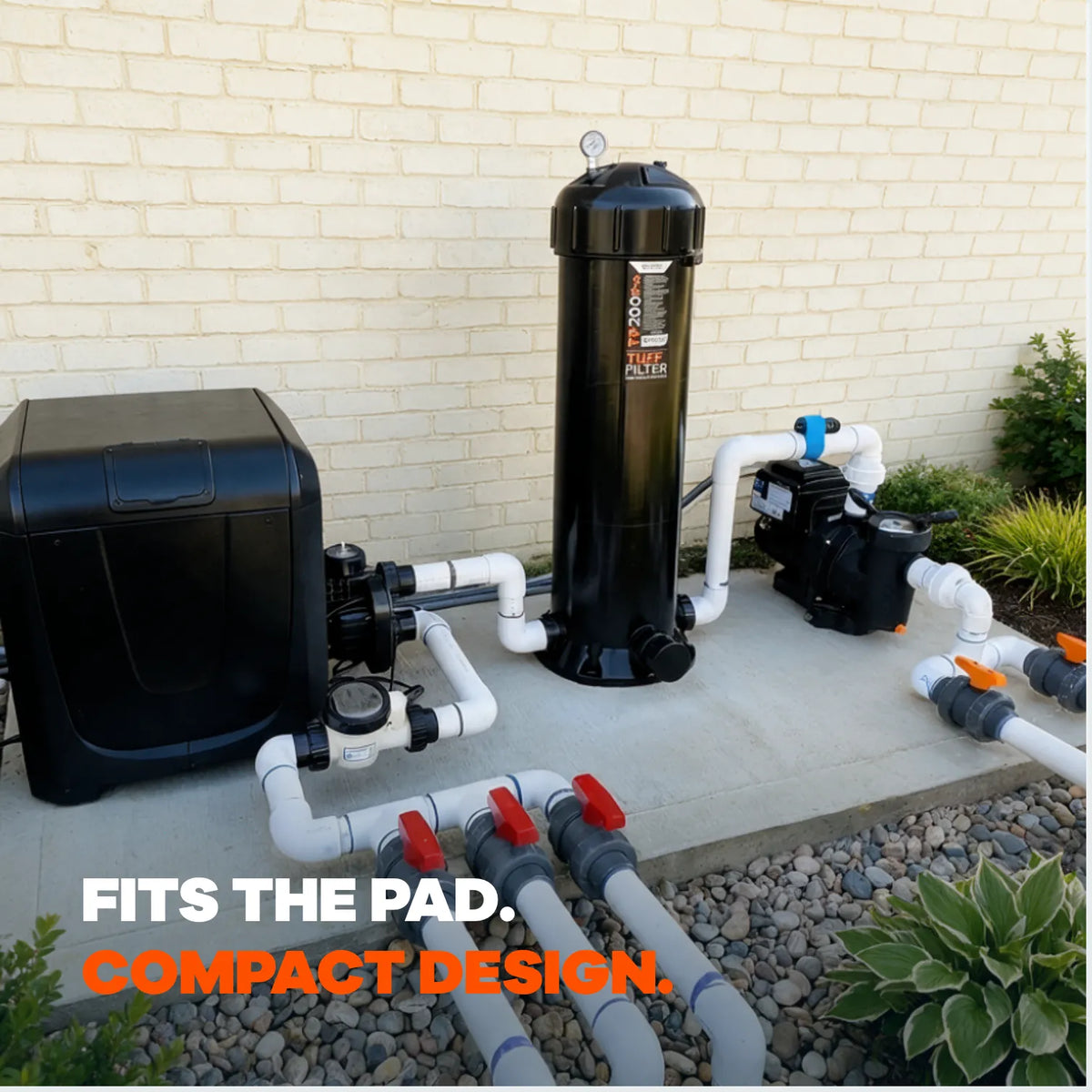

Fits the pad. Opens by hand.

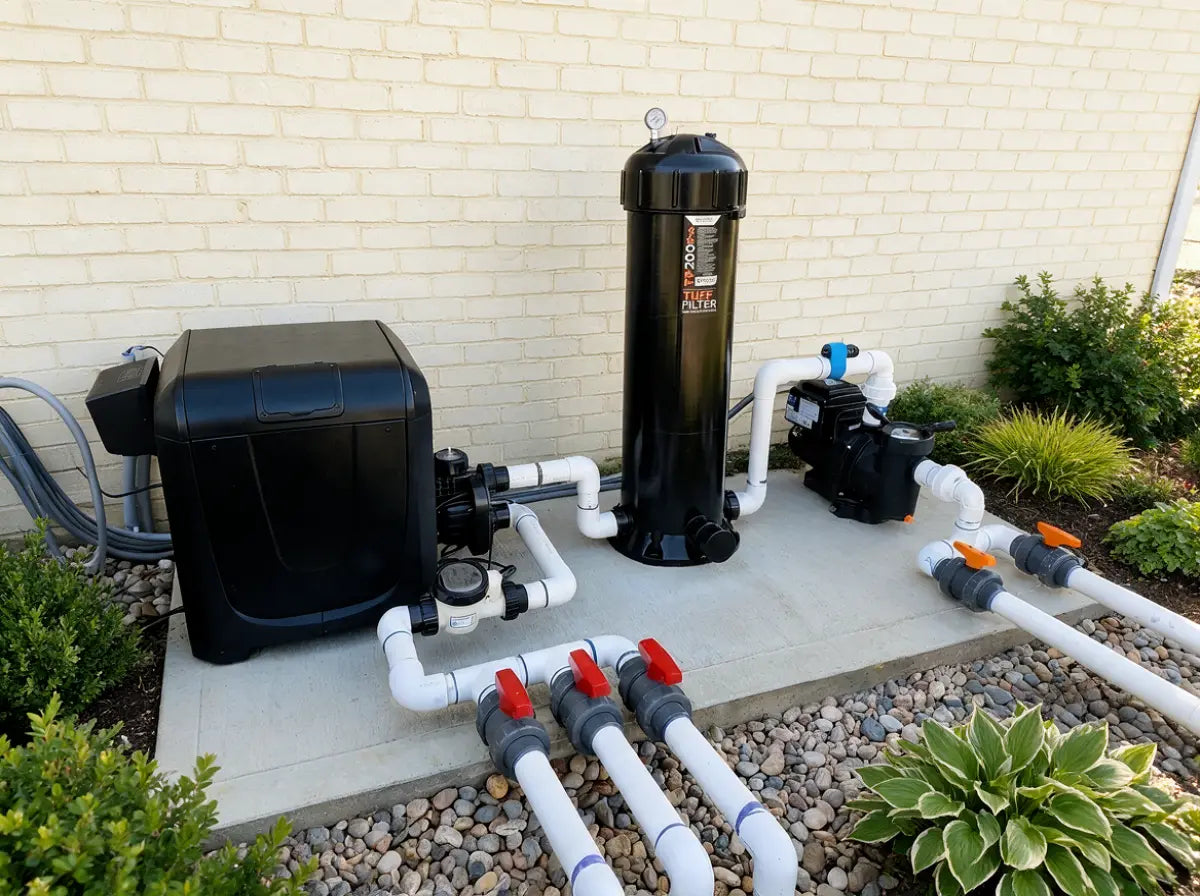

TuffFilter: installed neat, serviced fast
The numbers
- Filter area
- 200 sq. ft.
- Max. flow rate
- 80 GPM on 1.5" pipe · 120 GPM on 2" pipe · 150 GPM unrestricted
- Suitable pool size
- Up to 36,000 gallons
- Turnover time
- 12 minutes on 1.5" pipe · 7 minutes on 2" pipe, per 1,000 gallons
- Body
- Compact vertical, twist-lock lid, no clamps or tools
- Ports
- Two inlets and two outlets, positioned on different faces
- Unions
- 1.5" and 2"
- Max. working pressure
- 40.5 psi / 280 kPa
- Max. ambient temperature
- 130°F
- Cartridge (TF200)
- Pleated polyester element, reusable
- Cartridge (TF200PRO)
- Purple antimicrobial, Hurricane HF8412-01
- Filtration (TF200)
- Captures debris to 10–15 microns
- Filtration (TF200PRO)
- Captures debris to 5–10 microns
- Best suited to
- Retrofits, equipment-pad rebuilds, small-to-midsize residential pools
- White-label
- Available at qualifying volume
- Models
- TF200 ($800) · TF200PRO ($850)
- Warranty
- 5-year manufacturer's warranty on body. 1 year warranty on cartridge.

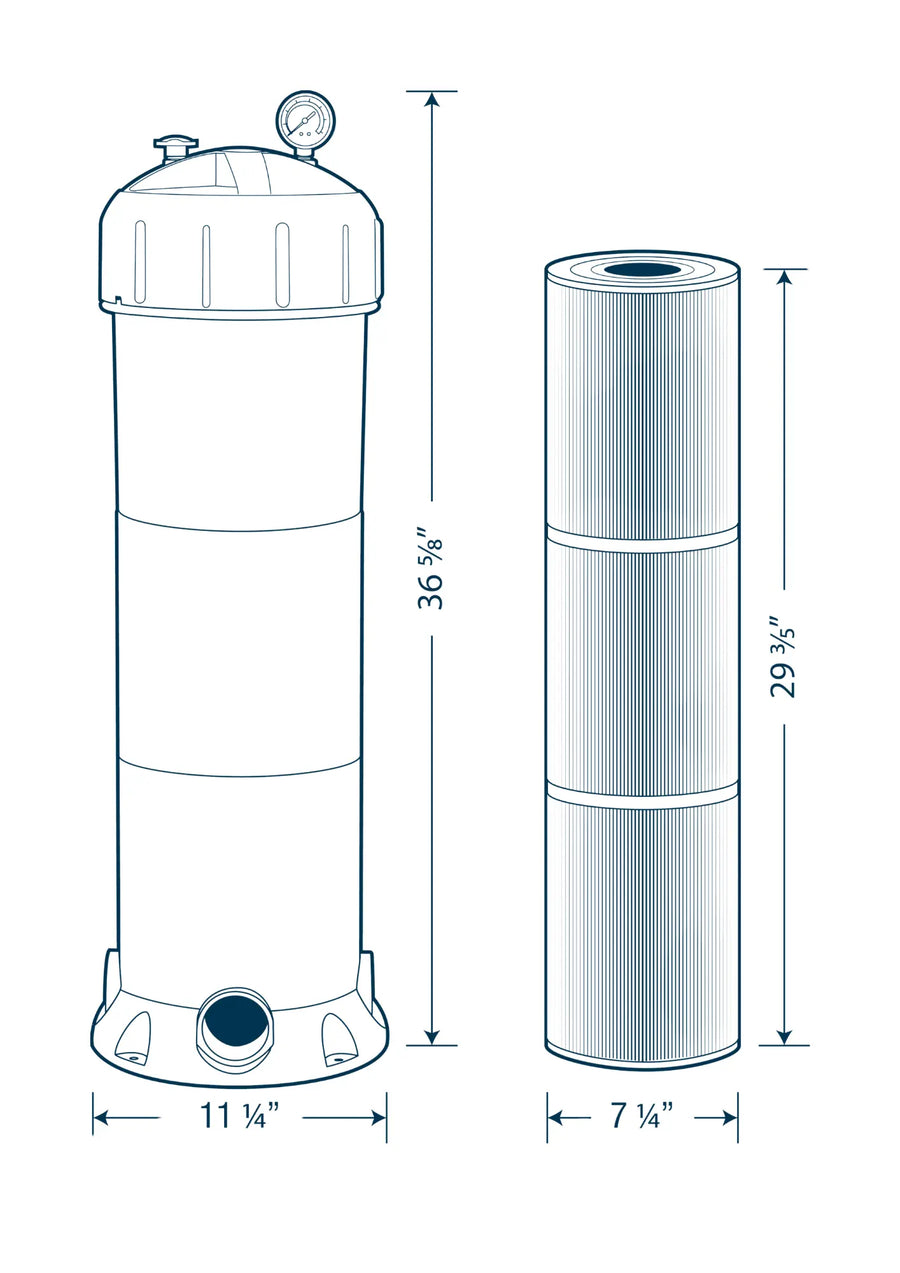

Will it fit your pad?
One body across both models. Check the footprint and the headroom before you order.
Allow clear headroom above the lid for cartridge removal. The twist-lock lid needs height, not clearance all the way around.
Dimensions reflect current TuffFilter engineering drawings. Confirm the final spec sheet with your BuildTuff contact before finalizing a commercial order.
Questions pool pros ask
Same 200 sq. ft. compact body, same flow, same twist-lock lid and same dual inlet and outlet layout. The difference is the cartridge: the TF200 runs a reusable pleated polyester element that captures debris down to 10–15 microns, and the TF200PRO runs the purple antimicrobial Hurricane HF8412-01, which goes finer at 5–10 microns. TF200 for everyday residential work, TF200PRO for service routes, heavier use and jobs where water clarity is the selling point.
Service companies, remodelers and builders working on tight equipment pads, retrofits and small-to-midsize residential pools. It's built to be quick to open and quick to plumb.

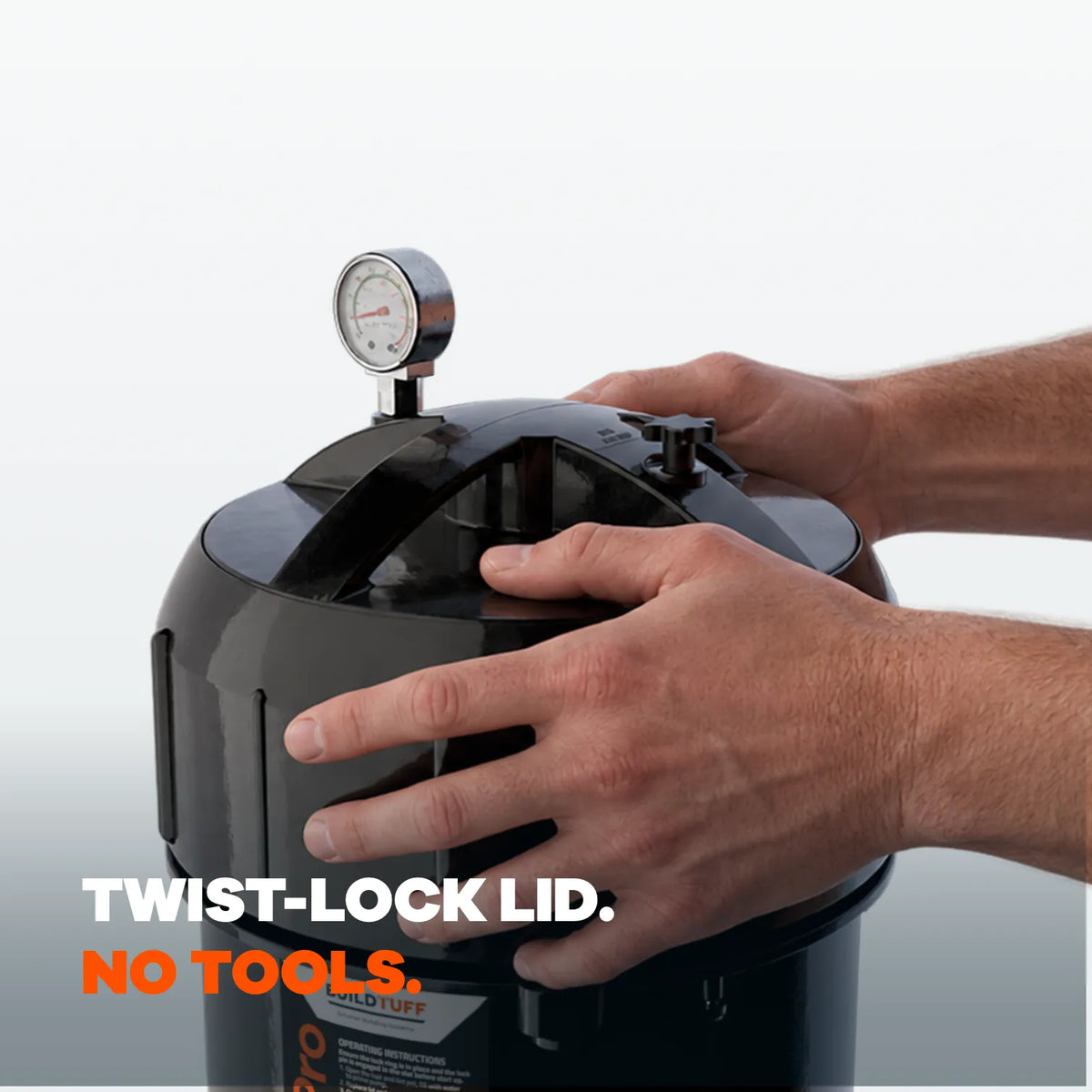

The twist-lock lid. There's no clamp ring, no band bolt and no tool required, so opening it doesn't depend on having clear space all the way around the tank or on a fastener that hasn't seized.

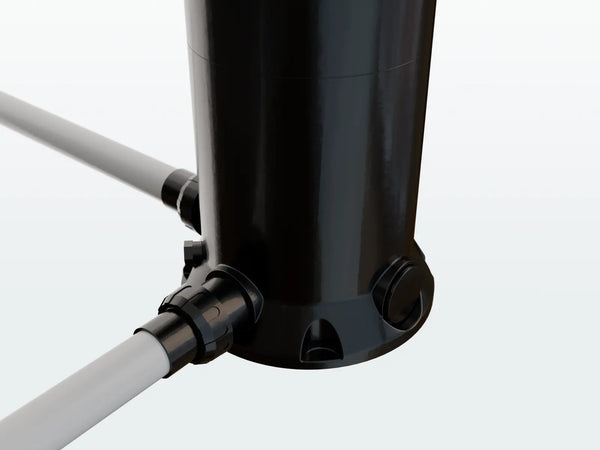

Because pads are rarely laid out the way a filter would prefer. Ports on different faces let you bring the plumbing in from whichever side the existing pipework allows, with 1.5" and 2" unions in the box, so there's less re-routing on a retrofit. Also includes two caps for the two ports you are not using.
The Hurricane HF8412-01, a 200 sq. ft. purple antimicrobial cartridge. We chose a widely cross-referenced cartridge on purpose, so replacements are available through major US retail rather than only from us.
Not always, and we'd rather say so. Larger multi-cartridge systems buy you longer intervals between cleans if you have the pad space and the debris load to justify them. TuffFilter wins where pad space, access and service time are the constraint.
Often, yes. The compact vertical body suits the footprint a sand filter leaves behind, and you trade backwashing for cartridge cleaning.
A 5-year manufacturer's warranty against defects in materials and workmanship, provided TuffFilter is installed per the manufacturer's instructions. The cartridge carries a 1-year warranty.
Yes. Tiered volume pricing is available for service routes, remodel books and distributor accounts, and white-label is available at qualifying volume. Tell your BuildTuff sales rep your annual volume and we'll quote it.
